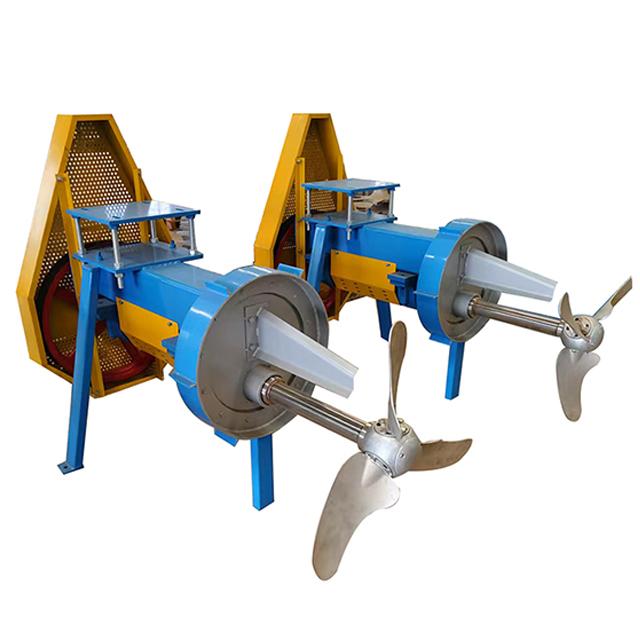

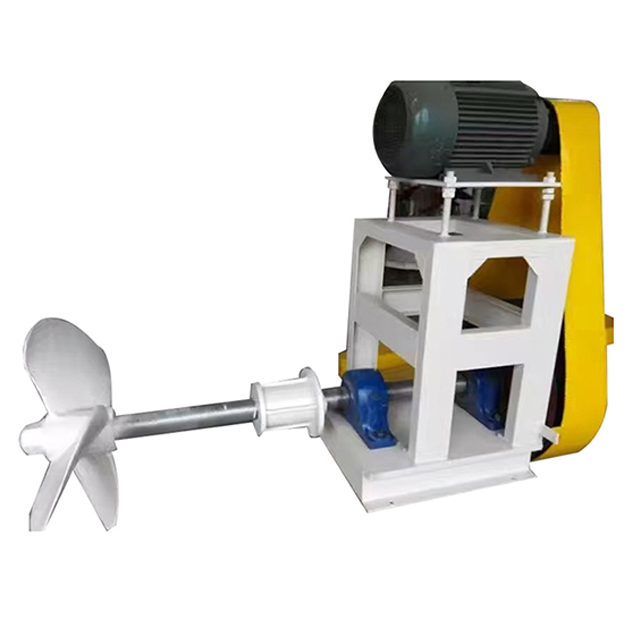

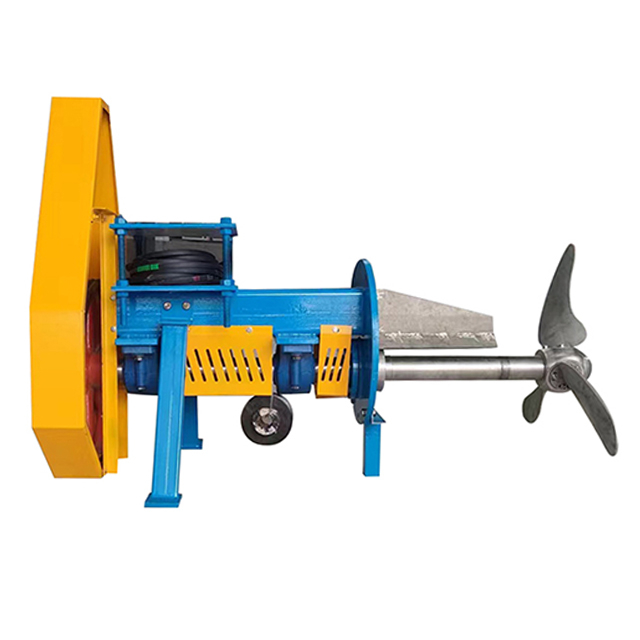

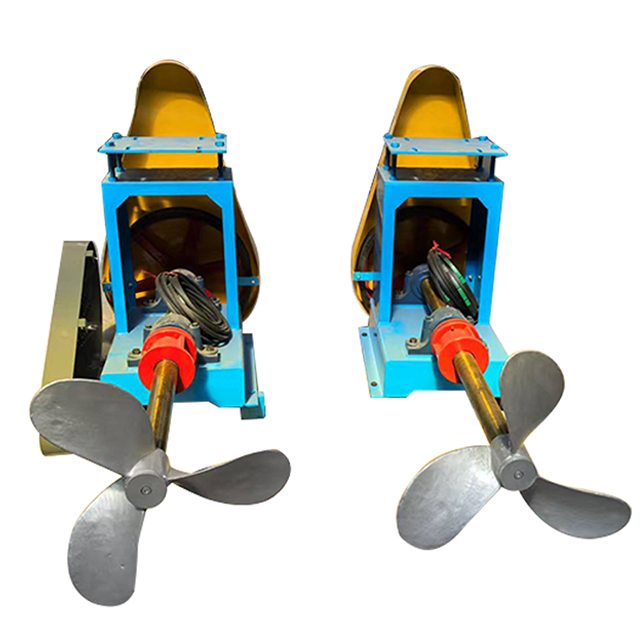

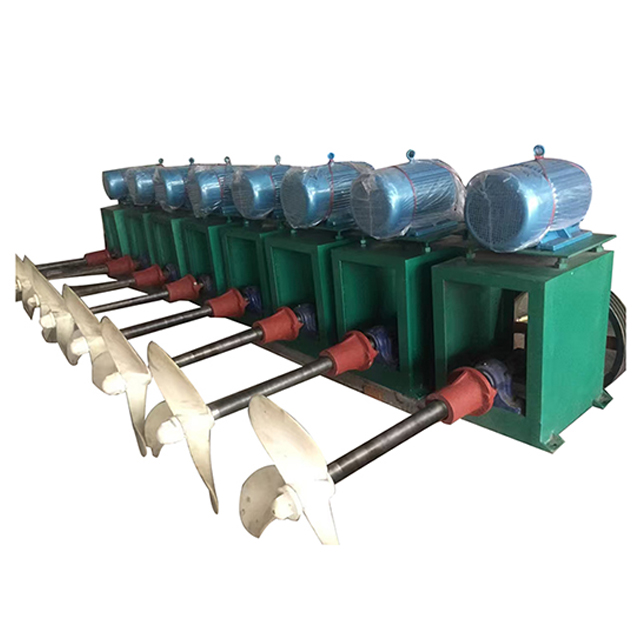

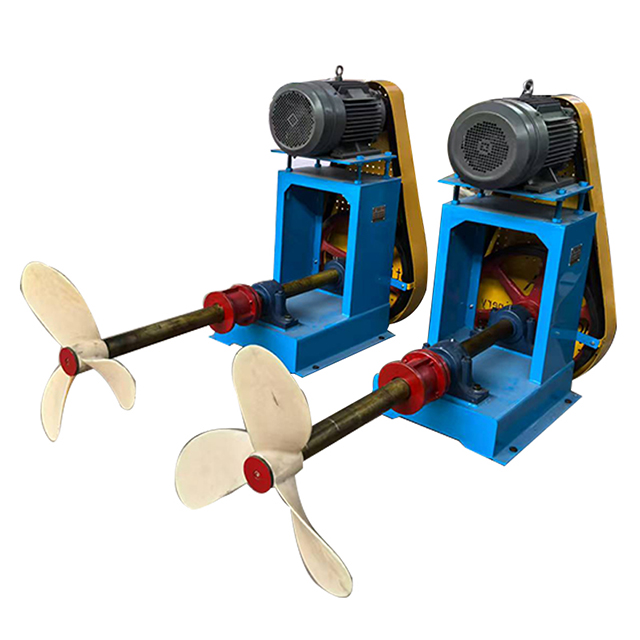

Pulp Chest Propeller Production for Paper Processing Line Use

Availability:
Quantity:
Product Description

The paper machine propeller is a key device in the paper making production line, used to promote the efficient flow of pulp in the paper machine's conveying system, ensuring the uniform distribution of pulp and improving the quality of paper and production efficiency. Its core functions include: slurry transportation: providing stable power, overcoming pipeline resistance, and achieving continuous slurry transportation. Mixing and dispersion: Through the design of the propeller blades, it promotes the thorough mixing of fibers and additives to prevent caking. Pressure control: Maintain the stability of the system pressure to ensure that the pulp enters the mesh section of the paper machine at the set flow rate.


Technical parameters

Type

JBT600 JBT800 JBT1000 JBT1300 JBT1500

Diameter of impeller(mm)

600 800 100 1300 1500

Chest volume(m³)

20-50 40-80 70-100 100-130 130-200

Power(KW)

7.5-11 11-18.5 22-30 30-55 70-100

Consistency(%)

2-4
